Display |
128x64 LCD Screen |
|
Card Capacity |
30.000 Card |
|
Transaction Capacity |
50.000 Log |
|
Connection Type |
RS232 /485 ,TCP-IP, USB Host |
|
Standart Function |
DLST,Scheduled-bell,Automatic Status Switch, 50 time zones, 5 access control groups, 10 combinations |
|
Optional Function |
ID/MF/HID |
|
Wiegand Signal |
Input/Output |
|
Record Type |
Password,Card |
|
Menu Language |
Turkish and English (other language is optional) |
|
Card Reader |
13,56 Mhz Mifare Card |
|

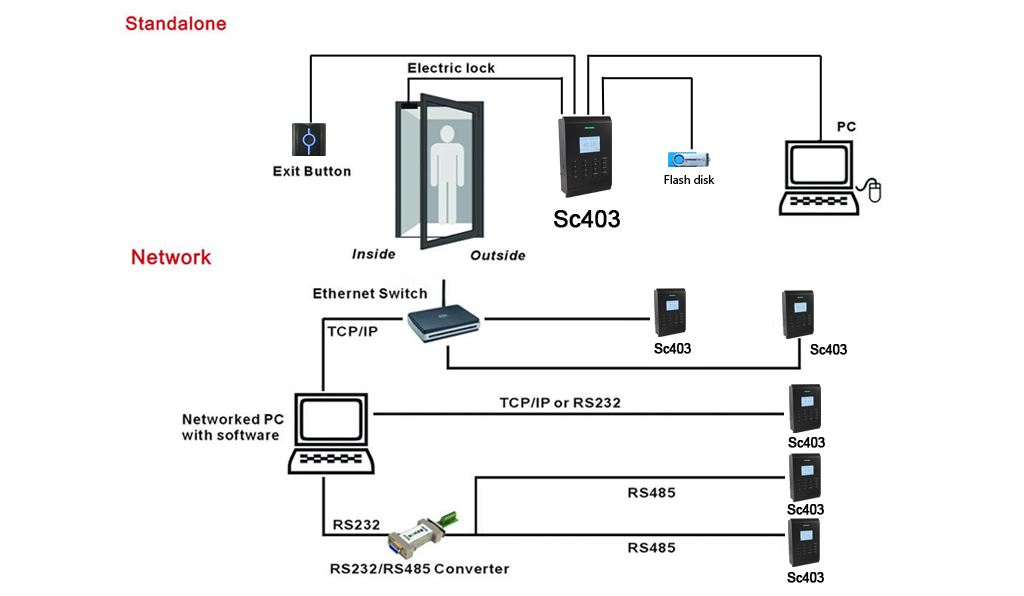

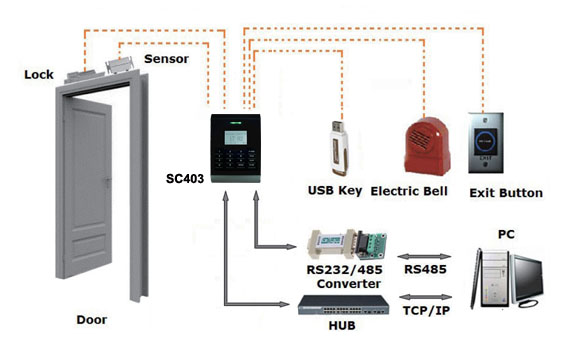

Access Control Interface |
3rd party electric lock,Door Sensor,Exit Button,Door Alarm |
|
Operating Temprature |
0Cᵒ + 45 Cᵒ |
|
Operating Humidity |
20% - 80% |
|
Power Supply |
12V DC , 3A |
|
Dimension |
99 x 194 x 43 mm |
|
Certificate |
UL , CE , FCC , MA , ISO9001, EEP , CCS, ETS |
